SS Tutshi

Vessel Drawings

4 drawings of the Tutshi. Select a drawing to open it at full size.

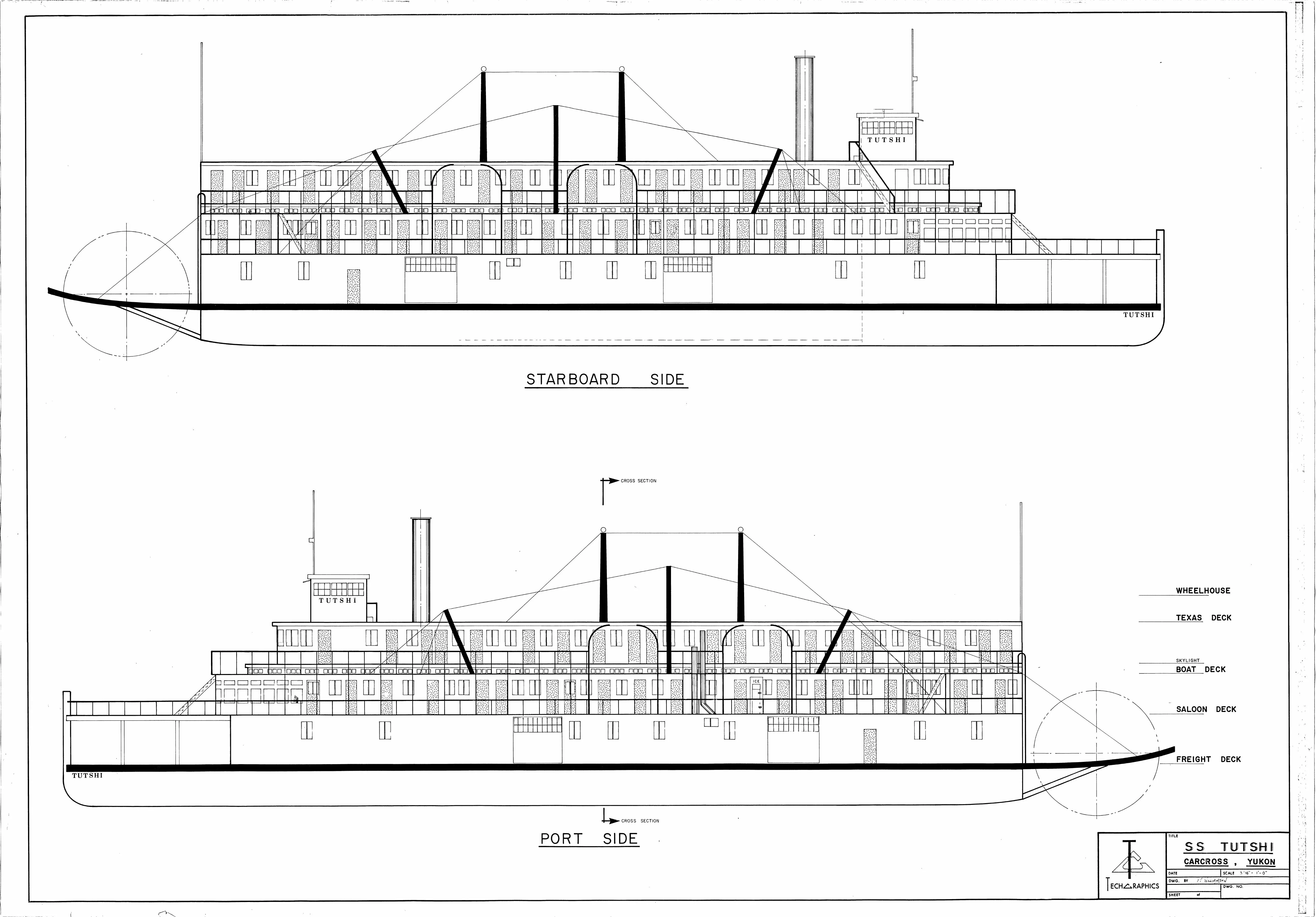

Starboard and port side elevations of the Tutshi with deck levels labelled freight, saloon, boat and texas deck and wheelhouse
Elevations, Starboard and Port Sides
Drawing: TechGraphics, Carcross, Yukon; drawn by Williamson. Copy provided by the Government of Yukon, Historic Sites Unit.

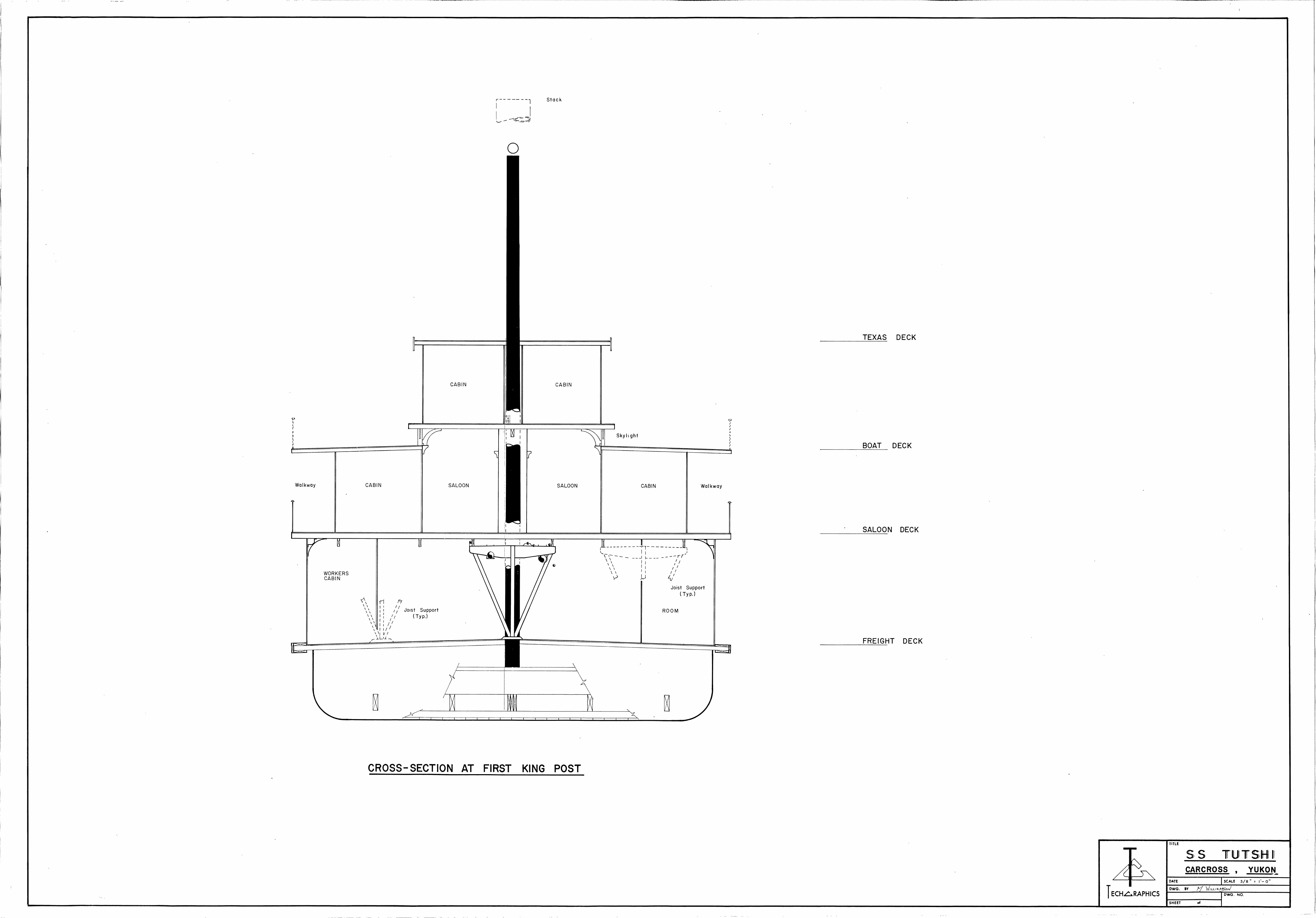

Transverse section through hull and decks at the first king post, showing cabins, saloon, walkways and joist supports
Cross-Section at First King Post
Drawing: TechGraphics, Carcross, Yukon; drawn by Williamson. Copy provided by the Government of Yukon, Historic Sites Unit.

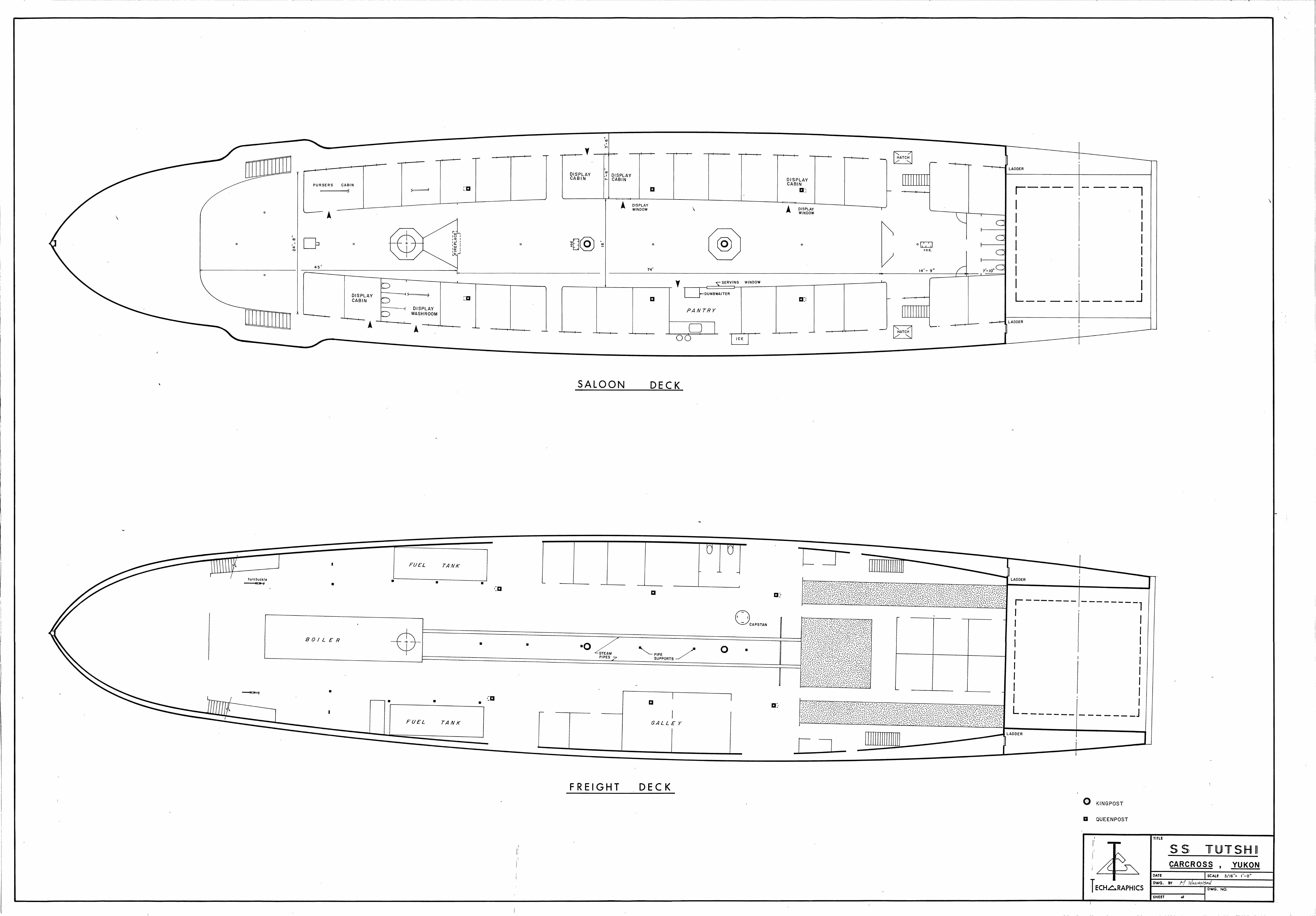

Plans of the saloon deck with cabins and pantry, and the freight deck with boiler, fuel tanks and galley
Saloon Deck and Freight Deck
Drawing: TechGraphics, Carcross, Yukon; drawn by Williamson. Copy provided by the Government of Yukon, Historic Sites Unit.

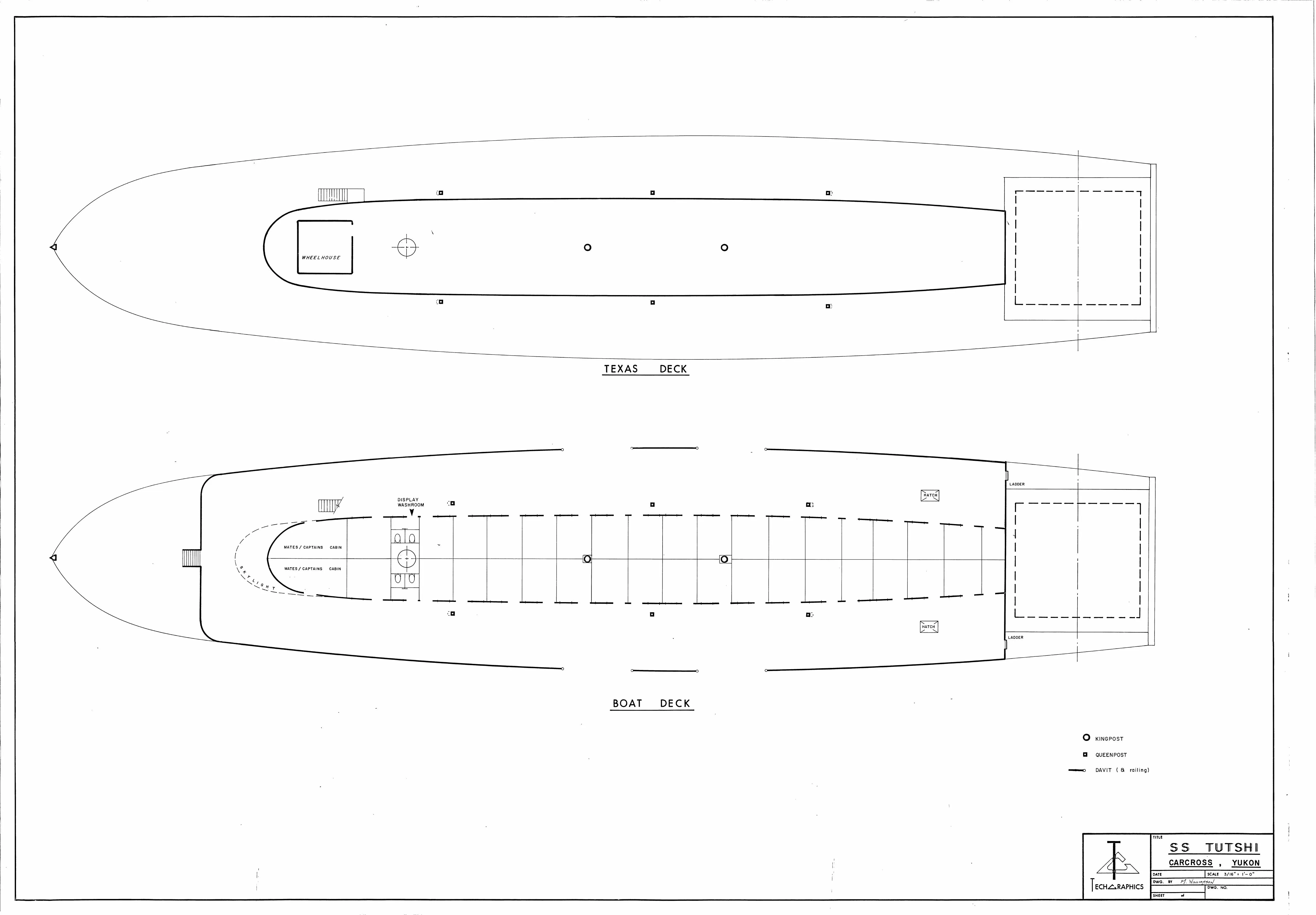

Plans of the texas deck with wheelhouse and the boat deck with skylight and mates' and captain's cabins
Texas Deck and Boat Deck
Drawing: TechGraphics, Carcross, Yukon; drawn by Williamson. Copy provided by the Government of Yukon, Historic Sites Unit.
